Fuel Cell Surge Tank Lift Pump Mounts Mid Depth Radium Engineering

Producent Radium Engineering
SKU USA-RAD-20-1014

  Na zamówienie



Fuel Cell Surge Tank Lift Pump Mounts Mid Depth Radium Engineering

FCST LIFT PUMP MOUNTS
The mounts below are specific to the following FCSTs ONLY: 20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX. NOTE: Lift pump mounting information for the newer FCST-X (20-199X-XX) can be found towards the bottom of this page.

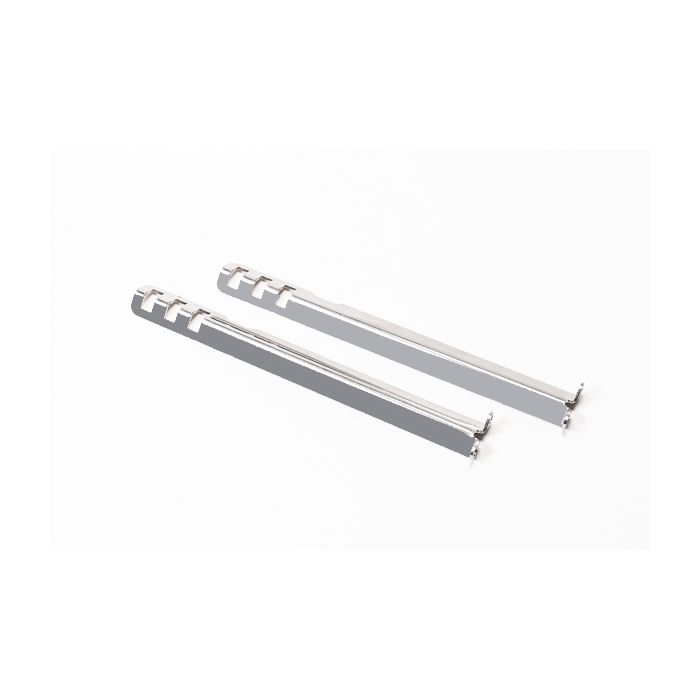

The kit below include 2 laser cut polished stainless steel brackets.
NOTE: The lift pump mounts included with the purchase of a FCST are designed for fuel cells no deeper than 9" (229mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock.

20-1014 FCST LIFT PUMP MOUNTS, MID DEPTH
These lift pump mounts were designed specifically for 14 gallon and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm).

However, they permit the FCST lift pump to be mounted into a fuel cell with an internal depth up to 12.7" (323mm).
