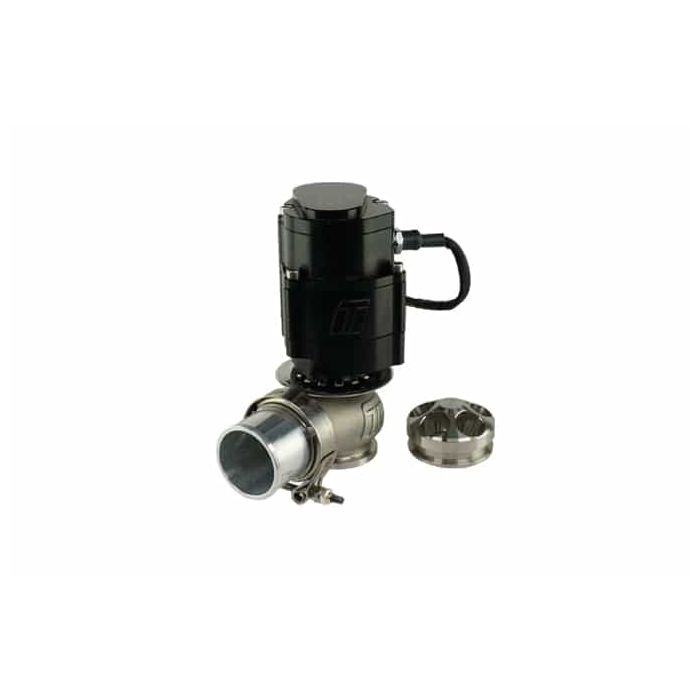

Wastegate Turbosmart eALV40 Electronic Anti Lag Gen V

The Turbosmart eALV40 (Fresh-Air bypass Anti-Lag Valve) for motorsport & high Performance Applications featuring fully electronic actuation, removing the need for the solenoids & tanks of traditional pneumatic systems. Featuring a 40mm valve diameter and a purpose designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The eALV40 utilised the SEMA Award Winning Technology of Turbosmart's GenV eWG Range, Providing unparalleled control & a specially sealed guide, fit for true ALV purpose.

SUPPLIED WITH

GenV eALV40 Electronic Anti Lag Valve

Un-Terminated Flying Lead

CompGate40 Valve Seat

CompGate40 Inlet & Outlet V-Bands

CompGate40 Inlet & Outlet Weld Flanges

Turbosmart Decal

SPARES

GenV ALV40 Valve Seat TS-0552-3001

GenV Replacement V-Band Nuts TS-0550-3080

GenV Inlet V-Band Clamp TS-0552-3003

Gen-V Outlet V-Band Clamp TS-0552-3004
ACCESSORIES

ALV40 6-1 Weld Flange TS-0550-3114

ALV40 5-1 Weld Flange TS-0550-3104

ALV40 4-1 Weld Flange TS-0550-3098

ALV40 3-1 Weld Flange TS-0550-3099

ALV40 2-1 Weld Flange TS-0550-3100

ALV40 Inlet Weld Flange – Alloy TS-0550-3101

ALV40 Inlet Pipe Adapter 1 3/4″ (44.5mm) TS-0550-3102

ALV40 Inlet Pipe Adapter 1-1/2″ (38.1mm) TS-0550-3103

GenV Position Sensor Cap (Upgrade) TS-0550-3062

GenV Position Sensor (Replacement) TS-0550-3057

1/8NPT to 6mm Hose End Adaptor TS-0550-3008

1/8NPT to -3AN Male to Male Adaptor TS-0550-3050

1/8NPT to -4AN Male to Male Adaptor TS-0550-3051

1/8NPT 90º Poshloc Fitting – Hi-Temp (1/4“) TS-0550-3054

1/8NPT T-Piece Pushloc Fitting – Hi-Temp (1/4“) TS-0550-3055

1/8NPT Straight Pushloc Fitting – Hi-Temp (1/4“) TS-0550-3053

Hi-Temp Pushloc Tubing 1/4″ Black (3 Metres) TS-0550-3056
TOOLS

C Spanner / Collar Tool TS-0550-3013

GenV ALV40 Welding Purge Bung TS-0550-3076

GenV ALV40 Diaphragm Replacement Tool TS-0550-3093

Wastegate Press / Spring Change Assistance Kit TS-0550-3094
