20-0761-0X FUEL HANGER PLUMBING KIT, MK5

These plumbing kits include everything required to plumb the fuel system between the Radium fuel pump hanger to a port injection fuel rail.

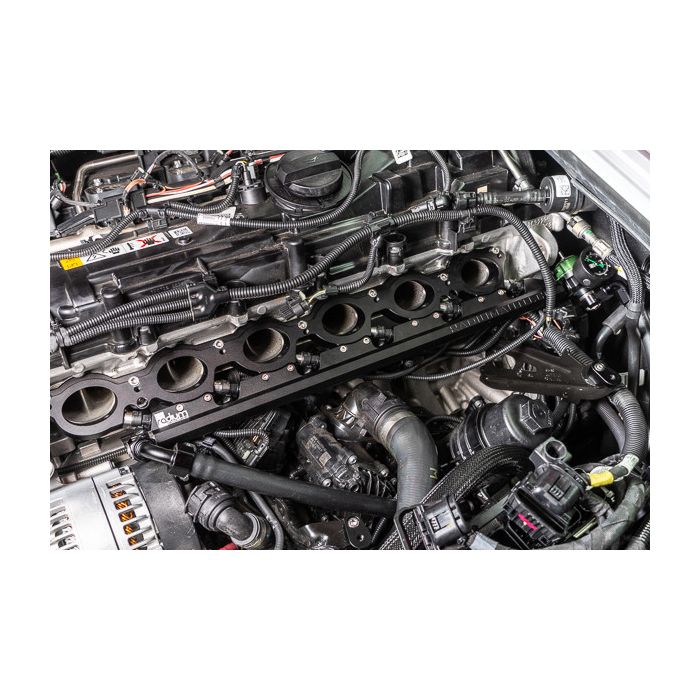

A -8AN 90 degree PuskLok hose end (shown below left) is included for connecting to an -8AN male port injection fuel rail fitting (not included).

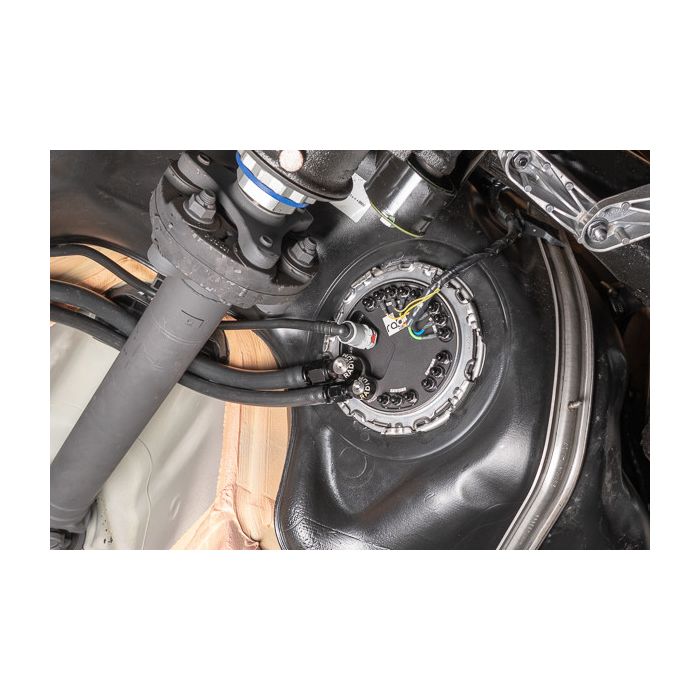

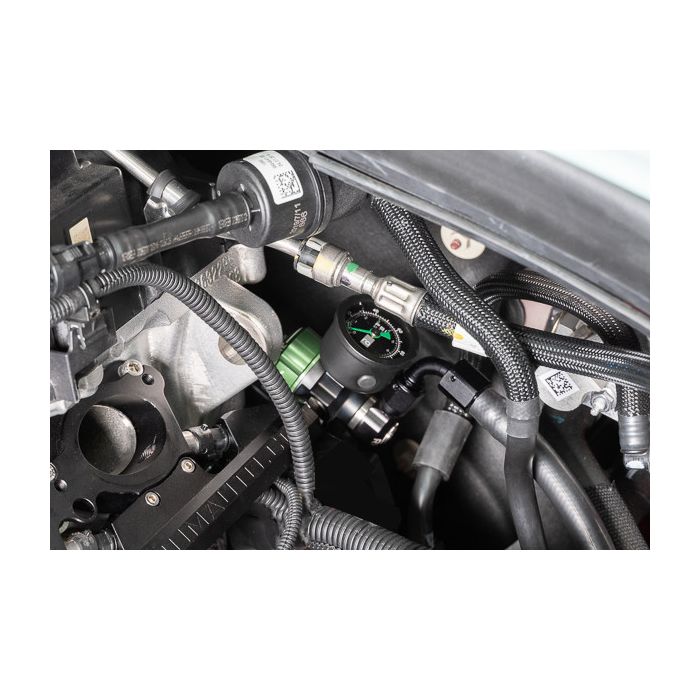

A -6AN 90 degree PuskLok hose end (below) is included for connecting to an -6AN male aftermarket FPR fitting (not included). A -6AN (3/8") fuel hose runs to the fuel pump hanger return port.

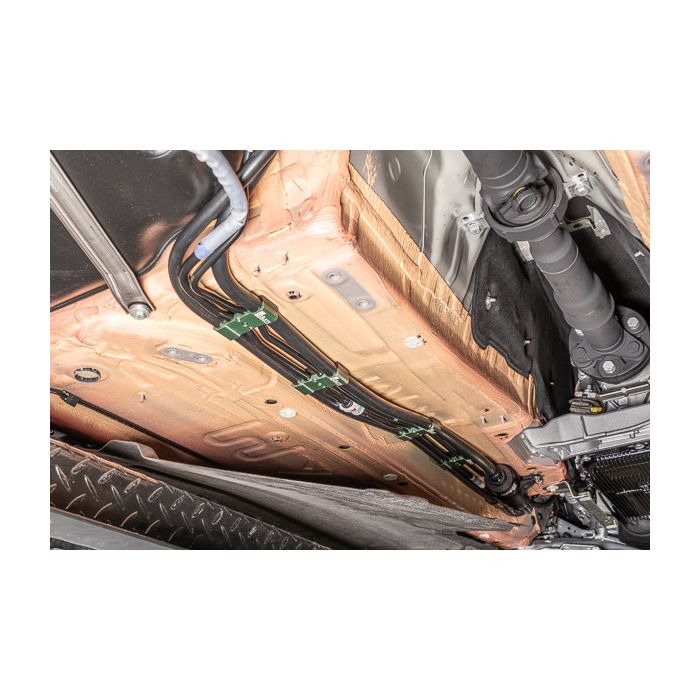

The feed and/or return hose can be easily modified for installation of an in-line flex fuel sensor. Furthermore, the hoses run though billet aluminum fuel line retainers.

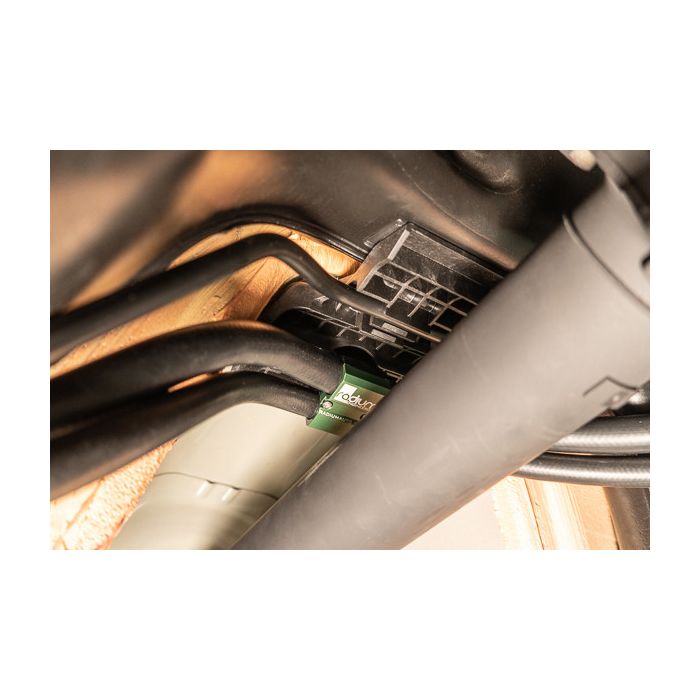

As shown below, a special retainer is provided to prevent the lines from contacting the driveshaft and exhaust when crossing over the tunnel.

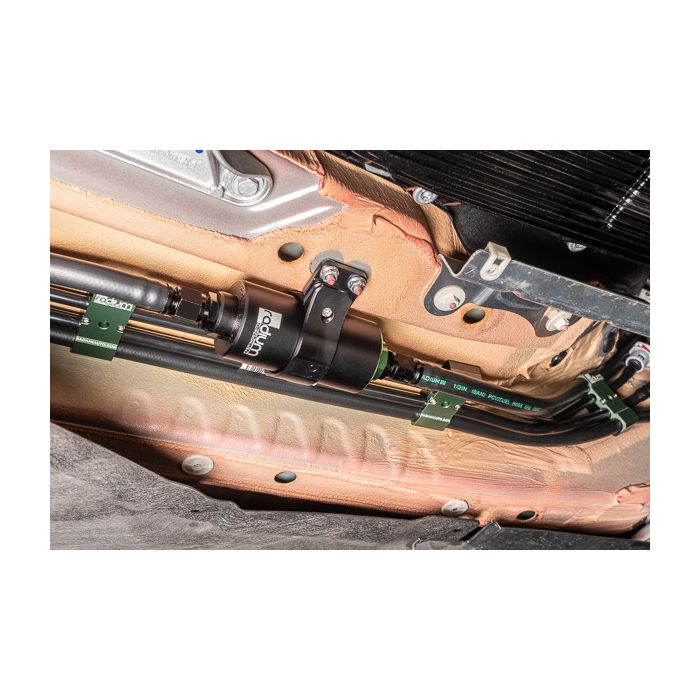

An -8AN (1/2") feed hose runs from the fuel pump hanger through the provided fuel filter using a specifically designed MK5 Supra bolt-on billet mount as shown below.

Depending on the kit selected (-03,-05), the fuel filter will be assembled with a choice of different elements. Go HERE for more filter element information.

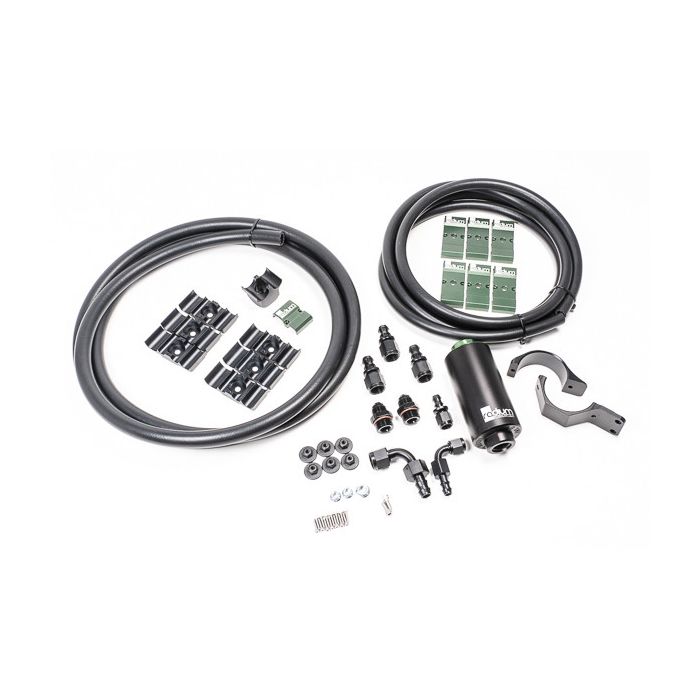

INCLUDES

-Fuel Filter Microglass

-8AN Fuel Filter Adapter Fittings

-Billet Aluminum MK5 Supra Filter Mount

-8AN and 6AN PushLok Hose Ends

-8AN Fuel Feed Hose

-6AN Fuel Return Hose

-Fuel Line Retainers

-Stainless Steel Hardware

Instruction PDF
